Pyrometer CellaTemp PK 12

Article description

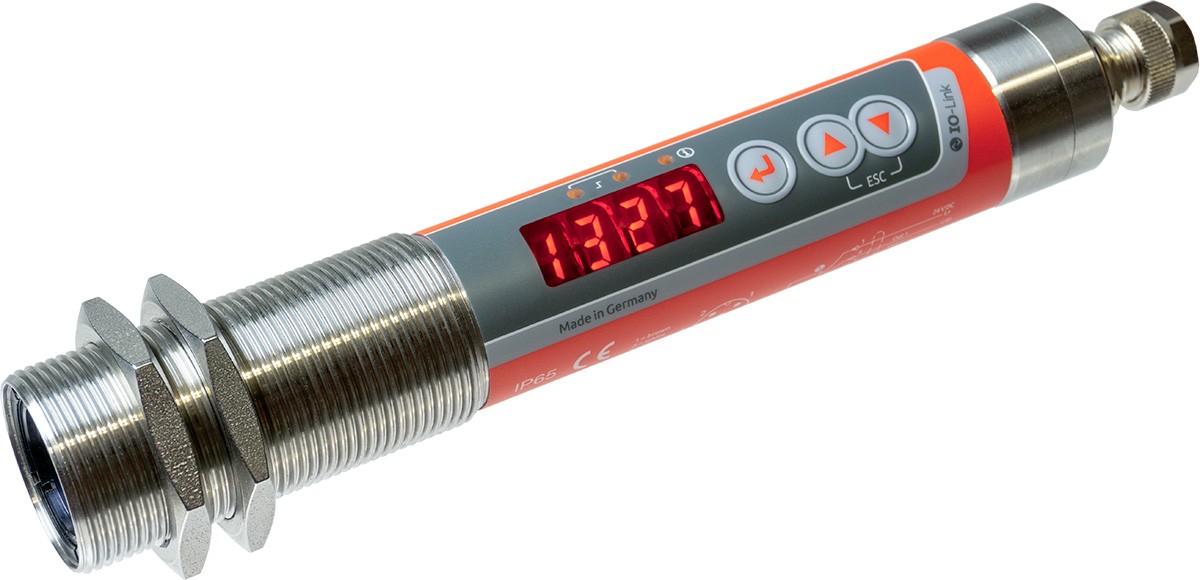

The CellaTemp® PK 12 is a pyrometer for fast, non-contact and wear-free temperature measurement from a safe distance in the temperature range between -30 and 300 °C. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:
  • Measuring range -30 to 300 °C
  • switching output universally configurable
  • high optical resolution due to precision lenses
  • IO-Link interface v
  • all parameters can be set via pushbutton on the sensor or via interface from the plant control system
  • 2 x switching outputs PNP open collector
  • very simple mounting via M30 central thread
  • large and bright LED display

Pyrometer CellaTemp PK 12
Properties
Version
Measuring range
-30 - 300 °C
Focus distance
0,3 m
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaTemp PK 12 BF 1
Measuring range -30 - 300 °C
Target size 18 mm
Focus distance 0,3 m
Shape of the measuring field round
Measuring principle one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PK 12

Technical Data

Measurement parameters

Measuring range -30 - 300 °C
Sensor Thermopile
Spectral range 8 - 14 µm
Response time t90 ≤ 90 ms
Measurement uncertainty 0.75 % of temp. reading [°C] plus 2.0 K
Repeatability 1 K
Temperature coefficient 0.1 K/K (T < 250 °C)
0.04 %/K (T > 250 °C)
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 0.1 K < 200 °C
1 K ≥ 200 °C

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output Open Collector 24 V DC, ≤ 150 mA
Test input 10 - 34 V DC (acc. to IEC 61131-2)
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 50 mA at 24 V DC

Features

Display 4-digit LED display red, digit-height 8 mm
Status display 2 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection (A-coding)
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)

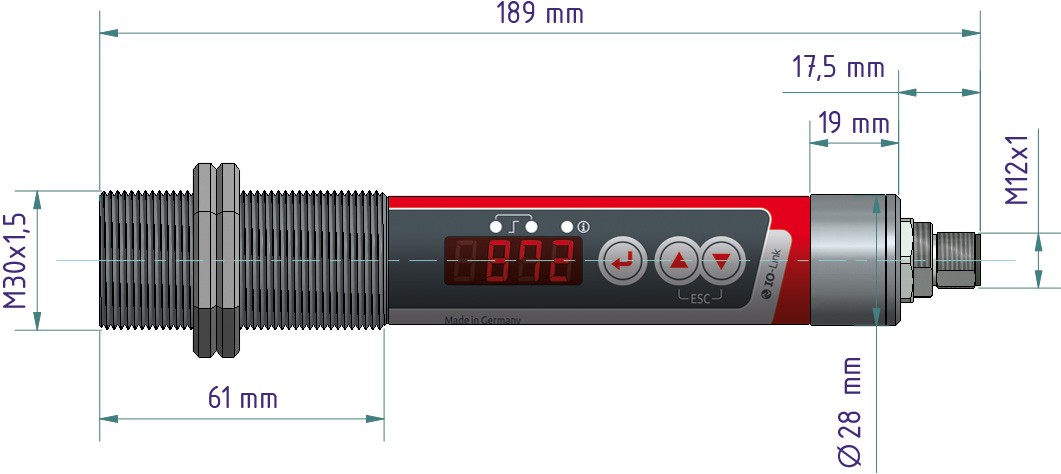

Dimension Ø 30 x 185 mm (without plug)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.4 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Quick emissivity setting via temperature display
Damping time constant
Hold time of the maximum value memory
Operation mode and switching points of the switching contact
Reset to factory setting
Key lock
Temperature display
Temperature unit °C/°F
Simulation of temperature
Test function

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Test function via button or test input
Service function Simulation of a measured value
Diagnostic function Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection for power supply, analogue output and switching output

Scope of delivery

Scope of delivery Infrared thermometer CellaTemp PK
Manual (short)
2 fixing nuts

Pyrometer CellaTemp PK 12

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PK 12

Downloads

Brochure CellaTemp PK PKF PKL
en
Brochure Flyer IO-Link
en
Manual CellaTemp PKx IO-Link
en
Quick guide CellaTemp PKxx IO-Link
en
Declaration of conformity Declaration from Conformity PKxy
en
UKCA Declaration from Conformity PKxy
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaTemp PK 12

Accessories

Pyrometer CellaTemp PK 12

IO-Link IODD

Type Datei Dateigröße
IODD PK12AF1_20221221.zip 377 KB Download

Pyrometer CellaTemp PK 12

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PK 12 AF 1_202302_en.pdf 99 KB Download

Pyrometer CellaTemp PK 12

Measuring field calculator

Pyrometer
  • PK 12 BF 1 (0,3 m)
PK 12 BF 1 (0,3 m)
Graphic length
mm
Measuring distance (mm)02448729612014416819221624026428818.00 mm
Measuring distanceMeasuring field diameter
0.00 mm16.50 mm
12.00 mm16.56 mm
24.00 mm16.62 mm
36.00 mm16.68 mm
48.00 mm16.74 mm
60.00 mm16.80 mm
72.00 mm16.86 mm
84.00 mm16.92 mm
96.00 mm16.98 mm
108.00 mm17.04 mm
120.00 mm17.10 mm
132.00 mm17.16 mm
144.00 mm17.22 mm
156.00 mm17.28 mm
168.00 mm17.34 mm
180.00 mm17.40 mm
192.00 mm17.46 mm
204.00 mm17.52 mm
216.00 mm17.58 mm
228.00 mm17.64 mm
240.00 mm17.70 mm
252.00 mm17.76 mm
264.00 mm17.82 mm
276.00 mm17.88 mm
288.00 mm17.94 mm
300.00 mm18.00 mm
