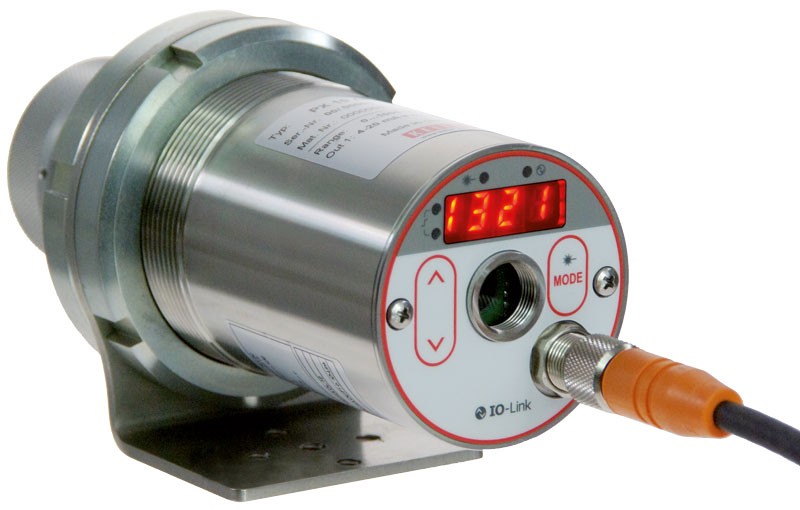

Pyrometer CellaCombustion PX 47

Article description

The CellaCombustion PX 47 is a special pyrometer for non-contact temperature measurement of sooty flames in coal-fired power stations and incineration plants. The measurement and signal processing, both based on the two-colour method, detect the heat radiation of the soot emitting particles of the flame in the near infrared range at two wavelengths. In order to correct the influence of the wavelength-dependent radiation properties of the soot particles and the optical density of flames, a special algorithm is used during the temperature determination. The flame temperature can be used to control the burnout in the furnace operation in order to reduce pollutant emissions and minimize slagging of the combustion chamber walls.

Special features:
  • Measuring range 700 to 1,700 °C
  • modern IO-Link interface
  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • 1 analogue output and 2 switching outputs
  • source freely configurable

Pyrometer CellaCombustion PX 47
Properties
Version
Measuring range
700 - 1700 °C
Focus distance
0,4 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaCombustion PX 47 AF 1
Measuring range 700 - 1700 °C
Focus distance 0,4 m - ∞
Shape of the measuring field round
Distance ratio 80 : 1
Objective PZ 20.01
Measuring principle two-colour

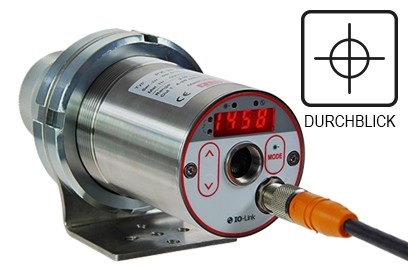

Sighting option Through-the-lens-sighting

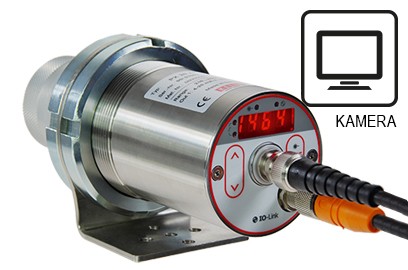

Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCombustion PX 47

Technical Data

Measurement parameters

Measuring range 700 - 1700 °C
Sensor Double photo diode
Spectral range 0,8 / 1,05 µm
Response time t98 ≤ 20 ms (T>650 °C)
≤ 10 ms (T>750 °C)
Measurement uncertainty 1 % of temp. reading [°C]
Repeatability 2 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

Sighting option Through-the-lens-sighting
Sighting option Laser pilot light
Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F
Measurement channel two-colour, single-colour 1 and single-colour 2
Threshold level of the contamination monitoring
Soot factor

in addition, for model with camera:
TBC function
White balance
Measuring point number

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
Manual (short)

Pyrometer CellaCombustion PX 47

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCombustion PX 47

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Manual CellaTemp PX 4x 5x 6x
en
Quick guide CellaTemp PX 4x 5x 6x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PX
en

Pyrometer CellaCombustion PX 47

Accessories

Pyrometer CellaCombustion PX 47

IO-Link IODD

Type Datei Dateigröße
IODD PX47AF1_20240806.zip 493 KB Download
IODD PX47AF1-C_20240806.zip 486 KB Download
IODD PX47AF1-L_20240814.zip 482 KB Download

Pyrometer CellaCombustion PX 47

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 47 AF1_L_202408_en.pdf 70 KB Download
MC PX 47 AF1_202408_en.pdf 71 KB Download
MC PX 47 AF1_C_202408_en.pdf 71 KB Download

Pyrometer CellaCombustion PX 47

Measuring field calculator

Pyrometer
  • PX 47 AF 1 (0,4 m - ∞)
PX 47 AF 1 (0,4 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523845.00 mm
Measuring distanceMeasuring field diameter
0.00 mm18.50 mm
16.00 mm17.96 mm
32.00 mm17.42 mm
48.00 mm16.88 mm
64.00 mm16.34 mm
80.00 mm15.80 mm
96.00 mm15.26 mm
112.00 mm14.72 mm
128.00 mm14.18 mm
144.00 mm13.64 mm
160.00 mm13.10 mm
176.00 mm12.56 mm
192.00 mm12.02 mm
208.00 mm11.48 mm
224.00 mm10.94 mm
240.00 mm10.40 mm
256.00 mm9.86 mm
272.00 mm9.32 mm
288.00 mm8.78 mm
304.00 mm8.24 mm
320.00 mm7.70 mm
336.00 mm7.16 mm
352.00 mm6.62 mm
368.00 mm6.08 mm
384.00 mm5.54 mm
400.00 mm5.00 mm
