Pyrometer CellaCombustion PK 62

Article description

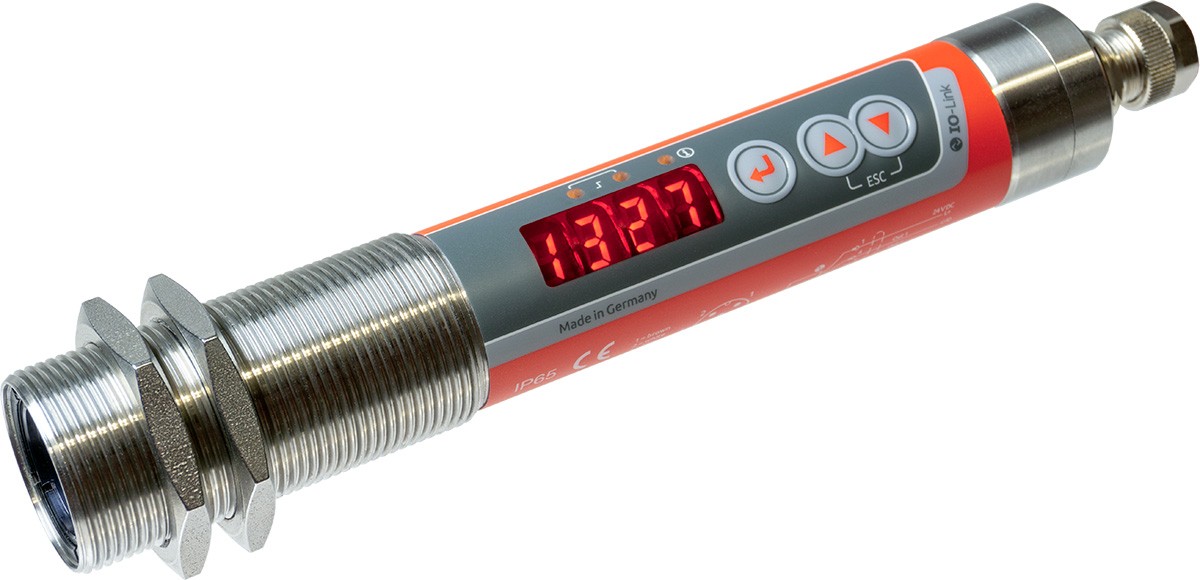

The CellaCombustion PK 62 is a special infrared thermometer for non-contact temperature measurement of sooty flames in coal-fired power stations and incineration plants. The measurement and signal processing, both based on the two-colour method, detect the heat radiation of the soot emitting particles of the flame in the near infrared range at two wavelengths. In order to correct the influence of the wavelength-dependent radiation properties of the soot particles and the optical density of flames, a special algorithm is used during the temperature determination. The flame temperature can be used to control the burnout in the furnace operation in order to reduce pollutant emissions and minimize slagging of the combustion chamber walls. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:

Measuring range 700 to 1,700 °C
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
2 x switching outputs PNP open collector
very simple mounting via M30 central thread
large and bright LED display

Pyrometer CellaCombustion PK 62

Measuring range		700 - 1700 °C 700 - 1700 °C
Focus distance		1,5 m 1,5 m

Your selection will affect other settings

Version

BF 1

You can request this article from us
Quantity:

Version	CellaCombustion PK 62 BF 1
Measuring range	700 - 1700 °C
Target size	21 mm
Focus distance	1,5 m
Shape of the measuring field	round
Measuring principle	two-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCombustion PK 62

Technical Data

Measurement parameters

Measuring range	700 - 1700 °C
Sensor	Double photo diode
Spectral range	0,8 / 1,05 µm
Response time t90	≤ 10 ms (T > 650 °C)
Measurement uncertainty	1 % of temp. reading [°C]
Repeatability	2 K
Temperature coefficient	0.05 %/K
Resolution current output	0.1 K + 0.005 % of selected measuring span
Resolution interface	0.1 K
Resolution display	1 K

Electrical parameters

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Switching output	2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input	10 - 34 V DC (acc. to IEC 61131-2)
Interface	IO-Link V1.1.3
Power supply	18 - 32 V DC
Current consumption	≤ 50 mA at 24 V DC

Features

Display	4-digit LED display red, digit-height 8 mm
Status display	3 x LED
Control elements	3 buttons

General parameters

Connection	M12 thread 5-pin connection (A-coding)
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)

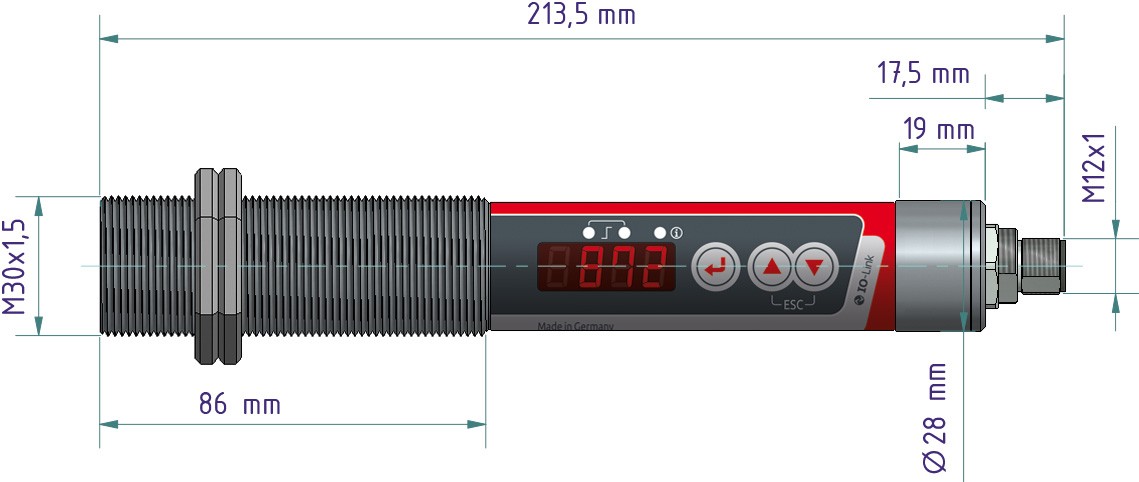

Dimension	Ø 30 x 210 mm (without plug)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.4 kg

Adjustable parameters

Parameters

Analog output 0/4 - 20 mA
Scaling of the analogue output
Ratio correction via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal	Signal display at an internal temperature > 75 °C
Service function	Simulation of a measured value
DTD-(Discontinuous Temperature Detection) function	Automatic temperature detection at discontinuous processes
Diagnostic function	Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection	for power supply, analogue output and switching output

Scope of delivery

Infrared thermometers CellaCombustion PK
Manual (short)
2 fixing nuts

Pyrometer CellaCombustion PK 62

Downloads

Brochure CellaTemp PK PKF PKL

Brochure Flyer IO-Link

Manual CellaCombustion PK

Quick guide CellaTemp PKxx IO-Link

Declaration of conformity Declaration from Conformity PKxy

UKCA Declaration from Conformity PKxy

EAC Deklaration PK-PA-PT

Pyrometer CellaCombustion PK 62

IO-Link IODD

Type	Datei	Dateigröße
	IODD PK62AF1_20221222.zip	470 KB	Download

Pyrometer CellaCombustion PK 62

IO-Link Manufacturer explanation

Type	Datei	Dateigröße
	MC PK 62 AF 1_202302_en.pdf	100 KB	Download

Pyrometer CellaCombustion PK 62

Measuring field calculator

Measuring distance	Measuring field diameter
0.00 mm	15.00 mm
60.00 mm	15.24 mm
120.00 mm	15.48 mm
180.00 mm	15.72 mm
240.00 mm	15.96 mm
300.00 mm	16.20 mm
360.00 mm	16.44 mm
420.00 mm	16.68 mm
480.00 mm	16.92 mm
540.00 mm	17.16 mm
600.00 mm	17.40 mm
660.00 mm	17.64 mm
720.00 mm	17.88 mm
780.00 mm	18.12 mm
840.00 mm	18.36 mm
900.00 mm	18.60 mm
960.00 mm	18.84 mm
1,020.00 mm	19.08 mm
1,080.00 mm	19.32 mm
1,140.00 mm	19.56 mm
1,200.00 mm	19.80 mm
1,260.00 mm	20.04 mm
1,320.00 mm	20.28 mm
1,380.00 mm	20.52 mm
1,440.00 mm	20.76 mm
1,500.00 mm	21.00 mm
