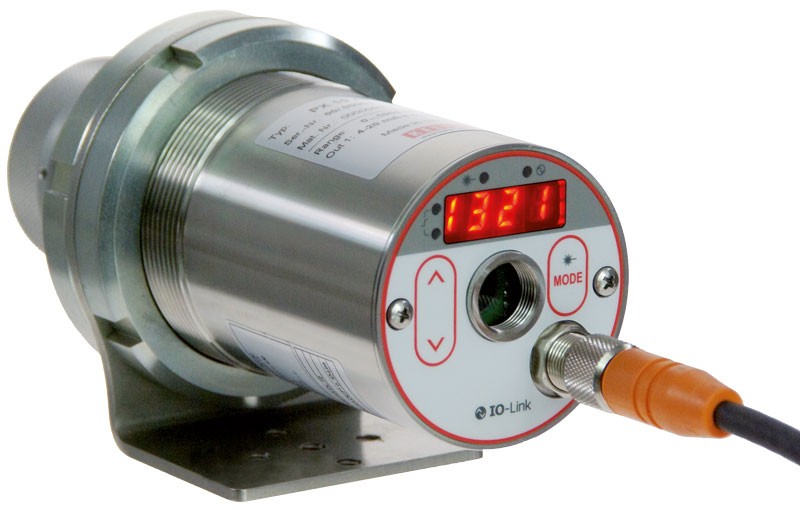

Pyrometer CellaCast PX 80

Article description

The CellaCast PX 80 was specially developed for measuring the temperature of liquid metals in the casting channels of blast furnaces and cupola furnaces. Furthermore, the pyrometer is used when transferring the metal from the melting or holding furnace into the transport ladle or casting ladle.

Special features:
  • Measuring range 750 to 2,400 °C
  • modern IO-Link interface
  • wear-free and maintenance-free measuring system for temperature measurement in melting and holding furnaces as well as cupolas and blast furnaces
  • ATD function for filtering the temperature of the slag-free and oxide-free metal surface
  • two-colour measuring method for interference-free measurement in the presence of dust and vapour
  • high-resolution lens for reliable measurement even from a great distance
  • through-the-lens sighting or laser pilot light or video camera for correct alignment and monitoring of the measuring field

Pyrometer CellaCast PX 80
Properties
Version
Measuring range
750 - 2400 °C
Focus distance
0,4 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaCast PX 80 AF 4
Version CellaCast PX 80 AF 6
Measuring range 750 - 2400 °C
Measuring range 750 - 2400 °C
Focus distance 0,4 m - ∞
Focus distance 1,2 m - ∞
Shape of the measuring field round
Distance ratio 150 : 1
Distance ratio 240 : 1
Objective PZ 20.01
Objective PZ 20.06
Measuring principle two-colour

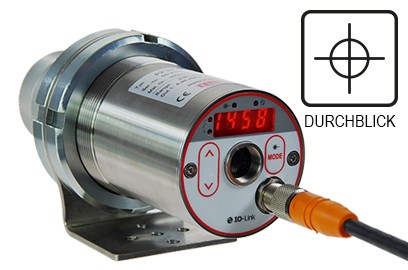

Sighting option Through-the-lens-sighting

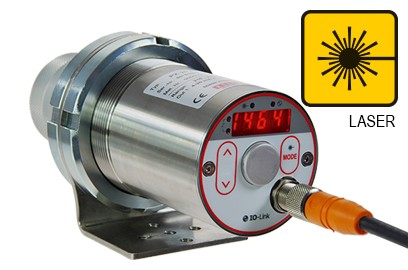

Sighting option Laser pilot light

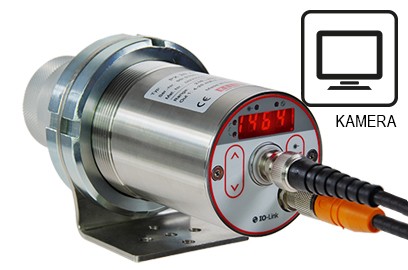

Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCast PX 80

Technical Data

Measurement parameters

Measuring range 750 - 2400 °C
Sensor Double photo diode
Spectral range 0.95 / 1.05 µm
Response time t98 ≤ 10 ms (T > 950 °C)
Measurement uncertainty 1 % of temp. reading [°C]
Repeatability 2 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses Standard lens PZ 20.01: focusing 0.4 m - ∞
Telephoto lens PZ 20.06: focusing 1.2 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

Sighting option Through-the-lens-sighting
Sighting option Laser pilot light
Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F
Measurement channel two-colour, single-colour 1 and single-colour 2
Threshold level of the contamination monitoring

in addition, for model with camera:
TBC function
White balance
Measuring point number

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
Manual (short)

Pyrometer CellaCast PX 80

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCast PX 80

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Application report CellaCast
en
Manual CellaCast PX 8x
en
Quick guide CellaCast PX 8x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PX
en

Pyrometer CellaCast PX 80

Accessories

Pyrometer CellaCast PX 80

IO-Link IODD

Type Datei Dateigröße
IODD PX80AF4-6-L_20210406.zip 2407 KB Download
IODD PX80AF4-6_20210406.zip 2396 KB Download
IODD PX80AF4-6-C_20210406.zip 2407 KB Download

Pyrometer CellaCast PX 80

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 80 AF 4 6 C_20210412_en.pdf 45 KB Download
MC PX 80 AF 4 6 L_20210412_en.pdf 45 KB Download
MC PX 80 AF 4 6_20210412_en.pdf 45 KB Download

Pyrometer CellaCast PX 80

Measuring field calculator

Pyrometer
  • PX 80 AF 4 (0,4 m - ∞)
  • PX 80 AF 6 (1,2 m - ∞)
PX 80 AF 4 (0,4 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523842.67 mm
Measuring distanceMeasuring field diameter
0.00 mm18.00 mm
16.00 mm17.39 mm
32.00 mm16.77 mm
48.00 mm16.16 mm
64.00 mm15.55 mm
80.00 mm14.93 mm
96.00 mm14.32 mm
112.00 mm13.71 mm
128.00 mm13.09 mm
144.00 mm12.48 mm
160.00 mm11.87 mm
176.00 mm11.25 mm
192.00 mm10.64 mm
208.00 mm10.03 mm
224.00 mm9.41 mm
240.00 mm8.80 mm
256.00 mm8.19 mm
272.00 mm7.57 mm
288.00 mm6.96 mm
304.00 mm6.35 mm
320.00 mm5.73 mm
336.00 mm5.12 mm
352.00 mm4.51 mm
368.00 mm3.89 mm
384.00 mm3.28 mm
400.00 mm2.67 mm
